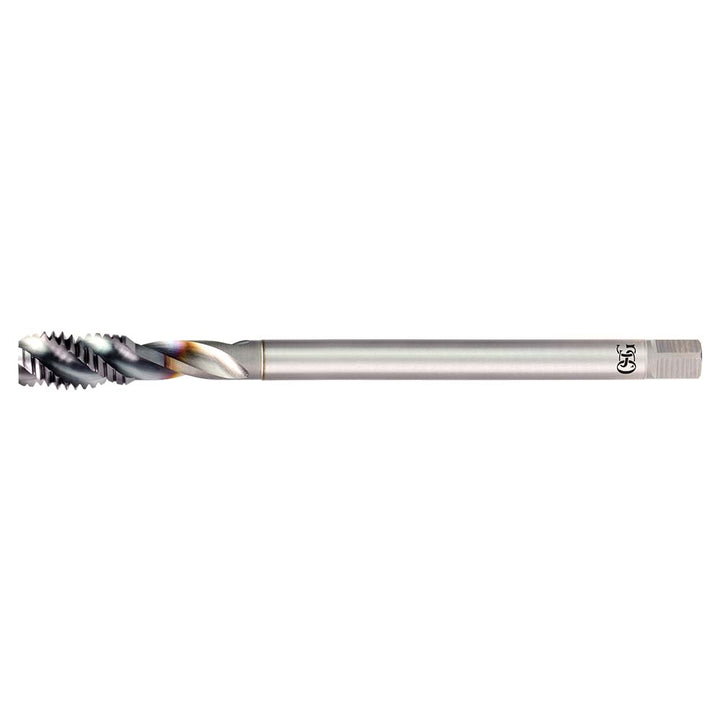

#10-32 UNF Powdered Metal Tap - OSG 1652501308
MFR# 1652501308Series 16525
$55.27List $70.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
Description
The OSG 1652501308 is a #10-32 UNF Powdered Metal tap. 2 flutes.
Specifications
ChamferSemi-Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length0.9760
Number of flutes2
Overall length5.9600
OversizeNo
Shank diameter0.1940
Square length0.2500
Square size0.1520
Tapping depth (mm)27.00
Threads per inch32
Thread directionRight Hand
Thread length0.3270
Thread limitH3
Thread size in#10-32
Thread standardUNF
