OSG

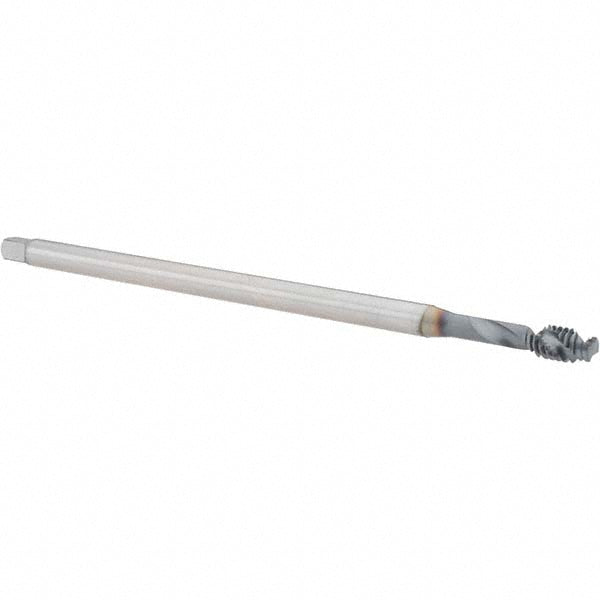

1/4-20 UNC Powdered Metal Tap, TiCN - OSG 1652501708
MFR# 1652501708Series 16525
$52.71List $67.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
CoatingTiCN
Description
The OSG 1652501708 is a 1/4-20 UNC Powdered Metal tap with a TiCN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.177
Number of flutes2
Overall length5.96
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Tapping depth (mm)33.00
Threads per inch20
Thread directionRight Hand
Thread length0.398
Thread limitH5
Thread size in1/4-20
Thread standardUNC
