OSG

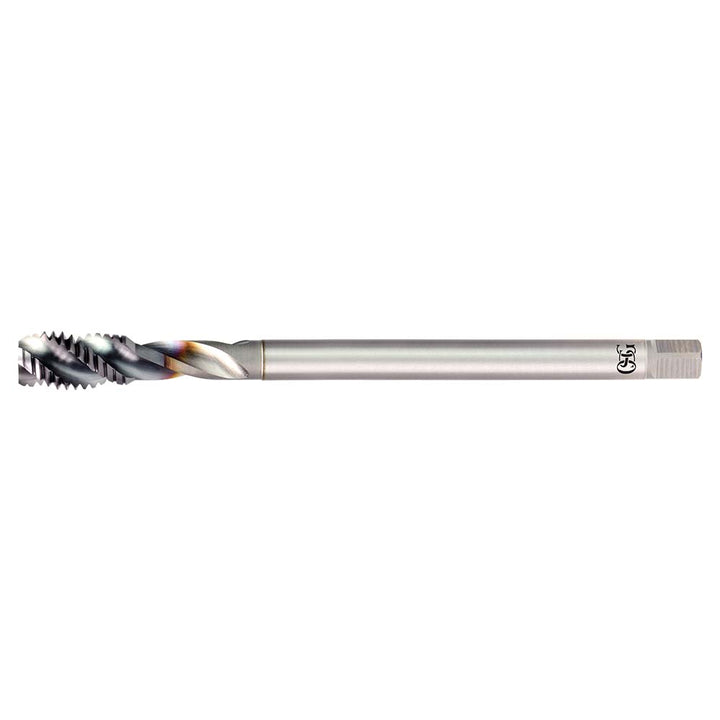

5/16-18 UNC Powdered Metal Tap, TiCN - OSG 1652502108
MFR# 1652502108Series 16525
$60.15List $77.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiCN
Description
The OSG 1652502108 is a 5/16-18 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.3780
Number of flutes3
Overall length5.9600
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter0.3180
Square length0.3750
Square size0.2380
Tapping depth (mm)35.00
Threads per inch18
Thread directionRight Hand
Thread length0.4450
Thread limitH5
Thread size in5/16-18
Thread standardUNC
