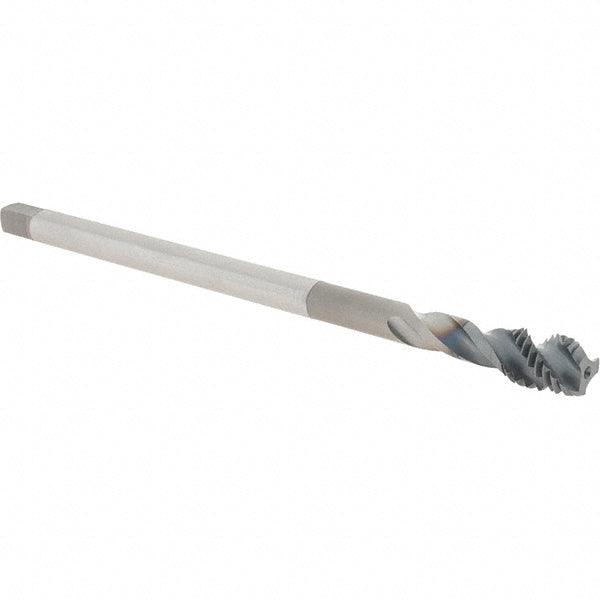

1/2-13 UNC Powdered Metal Tap, TiCN - OSG 1652503308
MFR# 1652503308Series 16525
$88.17List $113.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description
The OSG 1652503308 is a 1/2-13 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length2.835
Number of flutes3
Overall length7.87
OversizeNo
Shank diameter0.367
Square length0.4375
Square size0.275
Tapping depth (mm)72.00
Threads per inch13
Thread directionRight Hand
Thread length0.614
Thread limitH5
Thread size in1/2-13
Thread standardUNC
