OSG

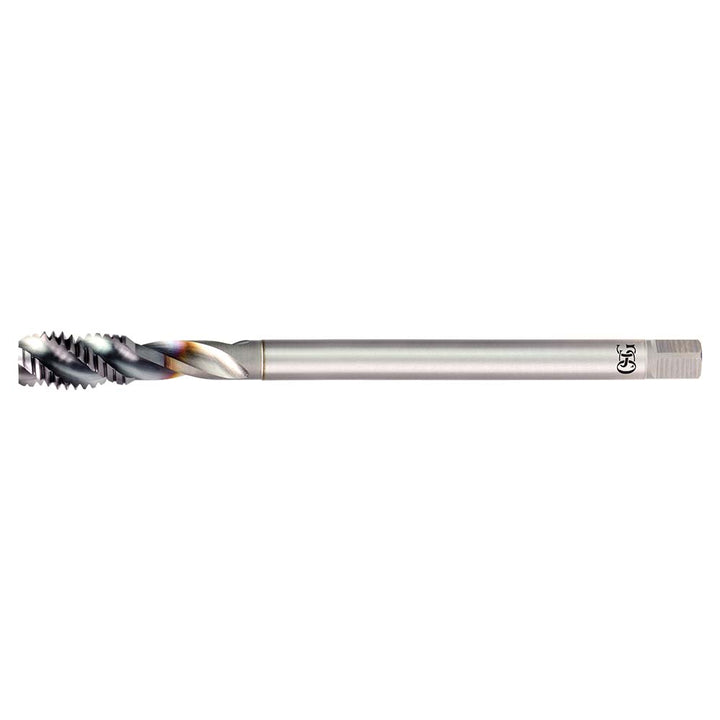

#1-8 UNC Powdered Metal Tap, TiCN - OSG 1652505308
MFR# 1652505308Series 16525
$342.84List $439.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#1-8
CoatingTiCN
Description
The OSG 1652505308 is a #1-8 UNC Powdered Metal tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length3.4645669291338583
Number of flutes4
Overall length7.874
OversizeNo
Shank diameter0.8
Square length0.8125
Square size0.6
Tapping depth (mm)88.00
Threads per inch8
Thread directionRight Hand
Thread length1.252
Thread limitH6
Thread size in#1-8
Thread standardUNC
