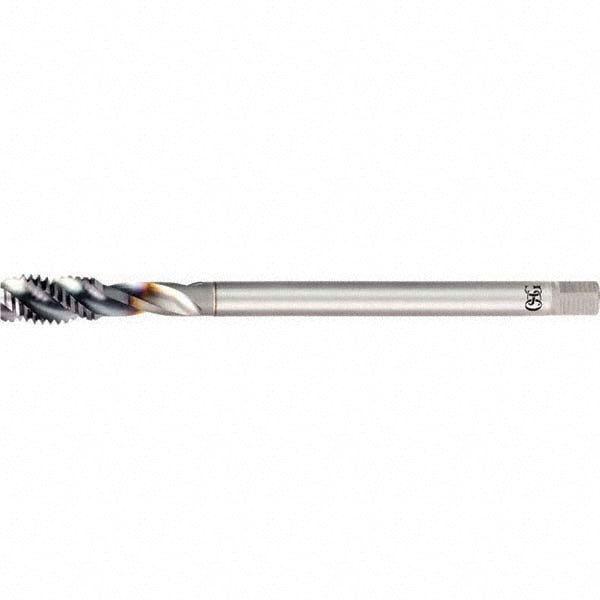

#4-40 UNC VC-10 Tap - OSG 1652505608
MFR# 1652505608Series 16525
$74.42List $95.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
Description
The OSG 1652505608 is a #4-40 UNC VC-10 tap. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fitNormal
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialVC-10
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.378
Number of flutes2
Overall length3.543
Shank diameter0.318
Square length0.1875
Square size0.11
Tapping depth0.7050
Threads per inch40
Thread directionRight Hand
Thread length0.197
Thread limitH2
Thread size in#4-40
Thread standardUNC
