OSG

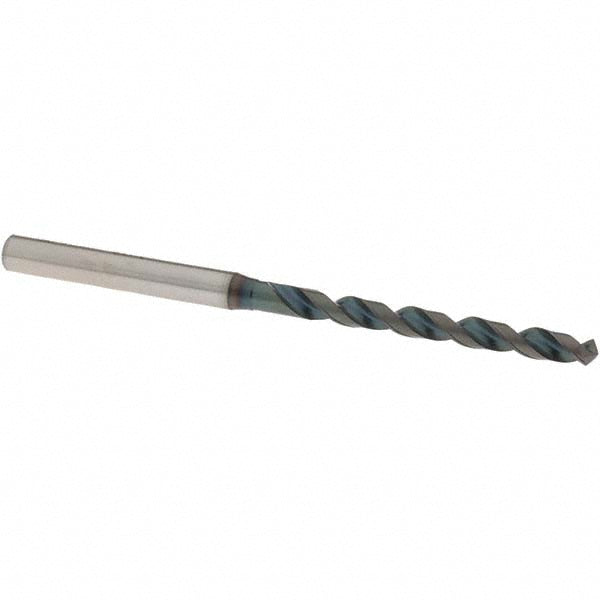

3/16" Vanadium High Speed Steel Drill Bit, WD1, 120° point - OSG 16527715
MFR# 16527715
$41.64List $53.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Description
The OSG 16527715 is a 3/16" Vanadium High Speed Steel drill bit with a WD1 finish, 120° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit finish coatingWD1
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees120
Flute length (mm)52.00
Flute typeSpiral
Overall length (mm)96.00
Point typeFaceted
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeFast
Web configurationTapered
Web thinningS-Thinned
