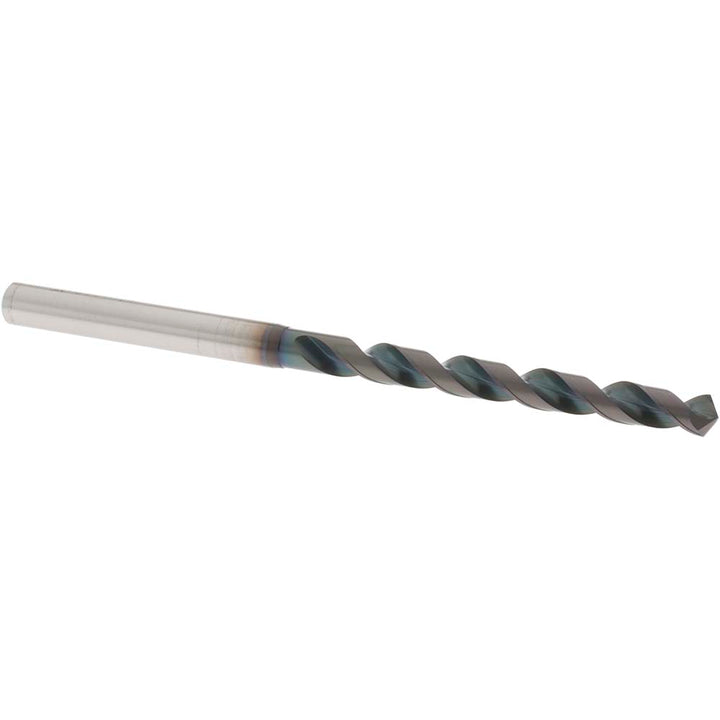

#3 Vanadium High Speed Steel Drill Bit, WD1, 120° point - OSG 16534215

OSG

#3 Vanadium High Speed Steel Drill Bit, WD1, 120° point - OSG 16534215

MFR# 16534215Series 1650

$47.93List $61.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The OSG 16534215 is a #3 Vanadium High Speed Steel drill bit with a WD1 finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1650.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingWD1
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.2130
Drill bit size range0.2000 - 0.2500
Drill bit size wire#3
Drill point angle degrees120
Flute length (mm)57.00
Flute typeSpiral
Number of flutes2
Overall length (mm)101.00
Point typeS-Thinned
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
