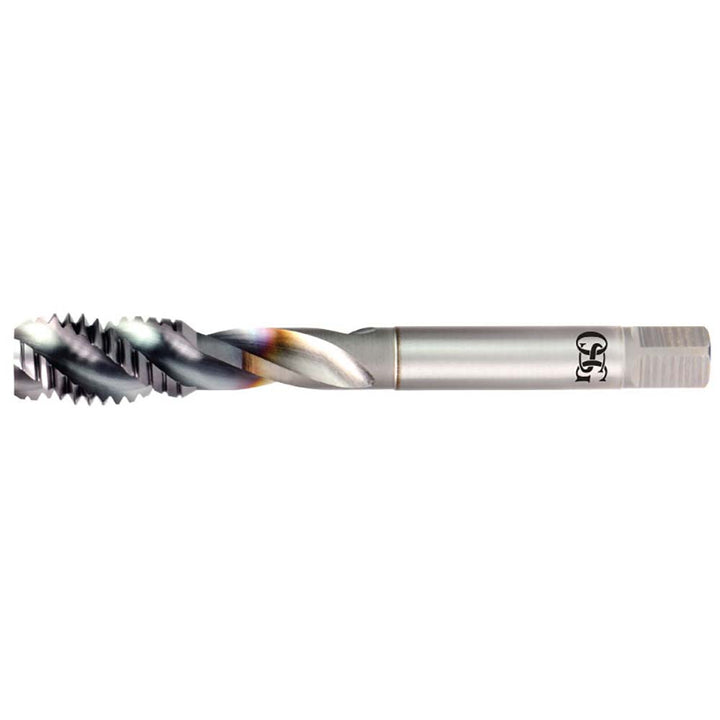

5/8-11 UNC Powdered Metal Tap - OSG 1654501308
MFR# 1654501308Series 16545
$129.16List $165.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
Description
The OSG 1654501308 is a 5/8-11 UNC Powdered Metal tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length2.126
Number of flutes3
Overall length4.331
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Tapping depth (mm)54.00
Threads per inch11
Thread directionRight Hand
Thread length0.728
Thread limitH5
Thread size in5/8-11
Thread standardUNC
