OSG

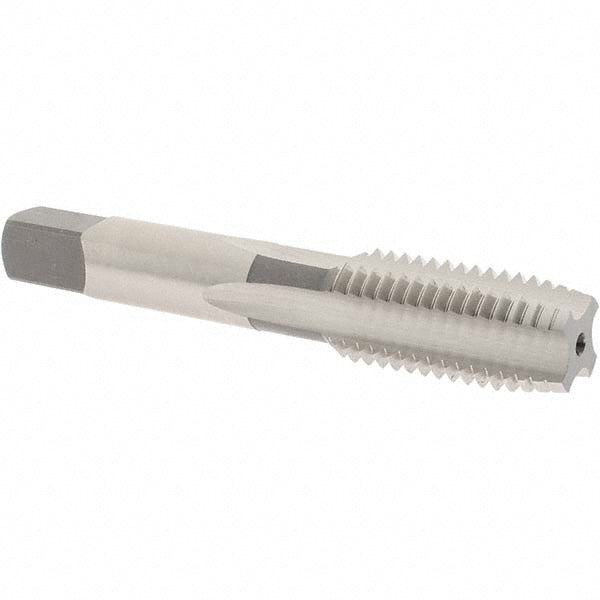

3/4-10 UNC High-Speed Steel Standard Tap - OSG 1663300
MFR# 1663300Series 101L
$64.05List $82.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
Description
The OSG 1663300 is a 3/4-10 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.2200
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Tap typeStandard
Threads per inch10
Thread directionLeft Hand
Thread length in2
Thread limitH3
Thread size in3/4-10
Thread standardUNC
