OSG

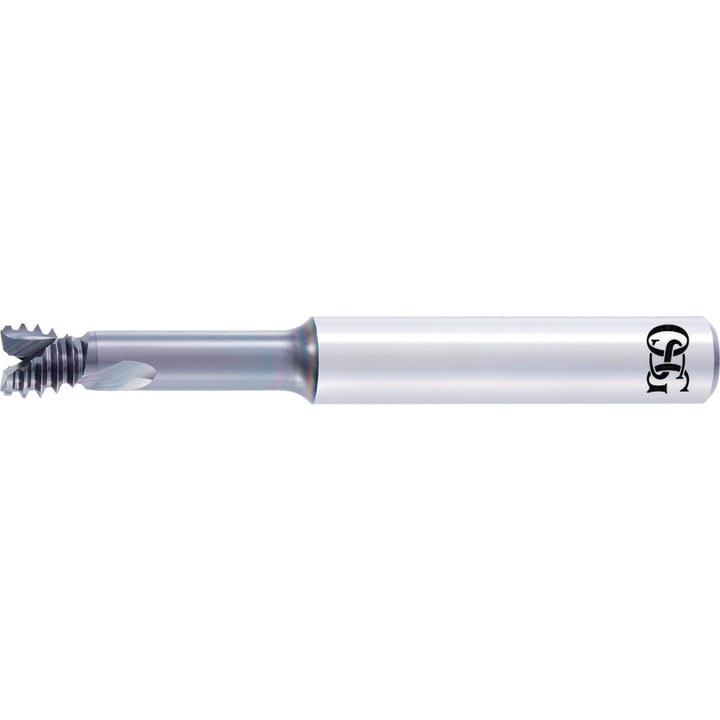

Helical Flute Thread Mills - OSG 1664700009
MFR# 1664700009Series 16647
$198.82List $255.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingDLC-IGUSS
Description
The OSG 1664700009 helical flute thread mills. Series 16647.
Specifications
Coating finishDLC-IGUSS
Coolant throughNo
Cutting diameter0.0830
Flute directionLeft Hand
Length of cut0.125
MaterialSolid Carbide
Number of flutes2
Overall length2
Shank diameter0.2500
Shank diameter tolerance (mm)h6
Shank typeStraight-Cylindrical
Teeth per inch40
Thread mill typeLong Reach
Thread size in#4-40
Thread standardUNC
Thread typeUNC
