OSG

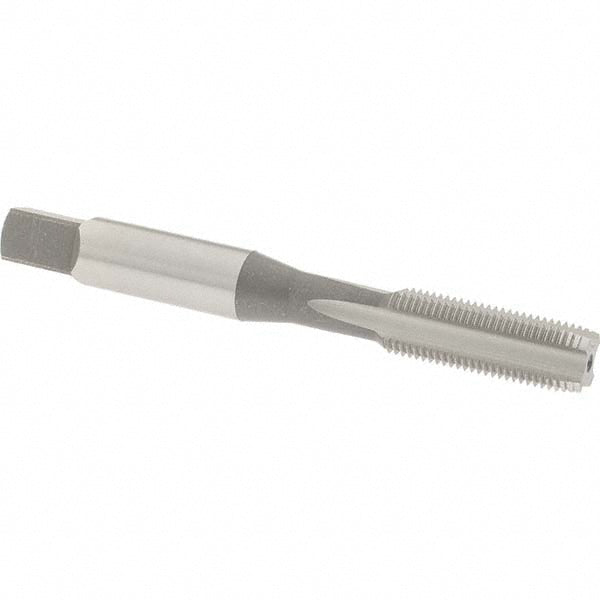

5/16-32 UNEF High-Speed Steel Standard Tap - OSG 1680300
MFR# 1680300Series 101N
$11.74List $15.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-32
Description
The OSG 1680300 is a 5/16-32 UNEF High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.3230
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Tap typeStandard
Threads per inch32
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-32
Thread standardUNEF
