OSG
5/8-24 UNEF High-Speed Steel Standard Tap - OSG 1681400
MFR# 1681400Series 101N
$48.76List $62.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size5/8-24
Description

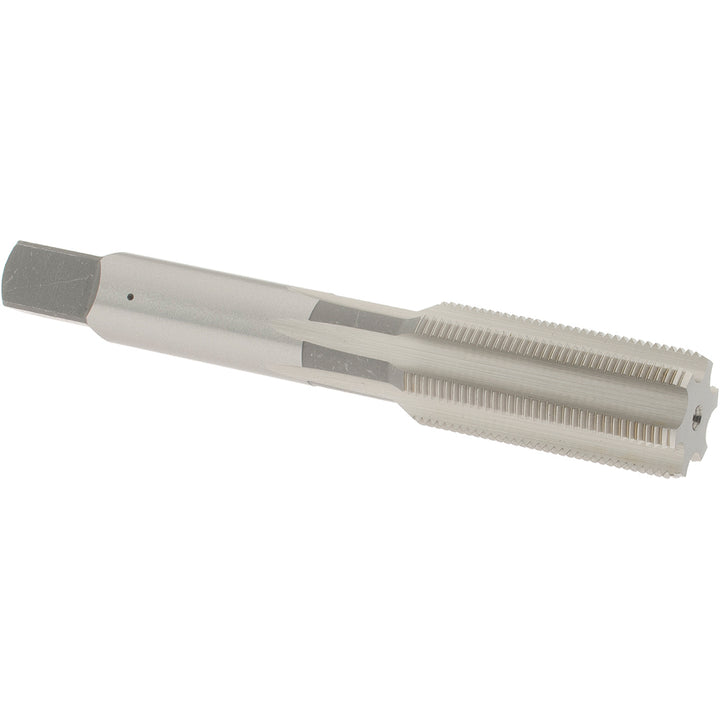

The OSG 1681400 is a 5/8-24 UNEF High-Speed Steel Standard tap. 6 flutes.
Specifications
ChamferBottoming
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.0000
Number of flutes6
Overall length in3-13/16
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in5/8-24
Thread standardUNEF
