OSG

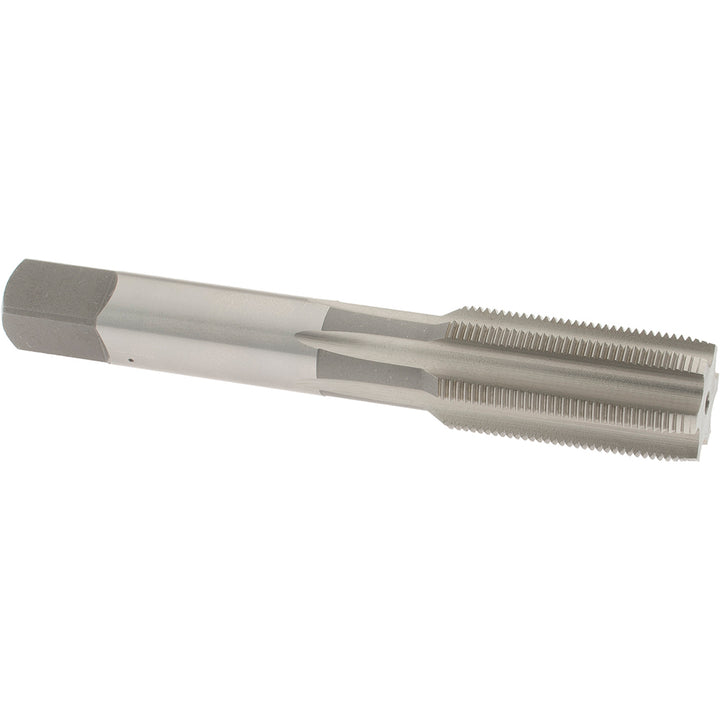

11/16-24 UNEF High-Speed Steel Standard Tap - OSG 1681500
MFR# 1681500Series 101N
$60.90List $78.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size11/16-24
Description
The OSG 1681500 is a 11/16-24 UNEF High-Speed Steel Standard tap. 6 flutes.
Specifications
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.1300
Number of flutes6
Overall length in4-1/32
OversizeNo
Shank diameter0.542
Square length0.625
Square size0.406
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in11/16-24
Thread standardUNEF
