OSG

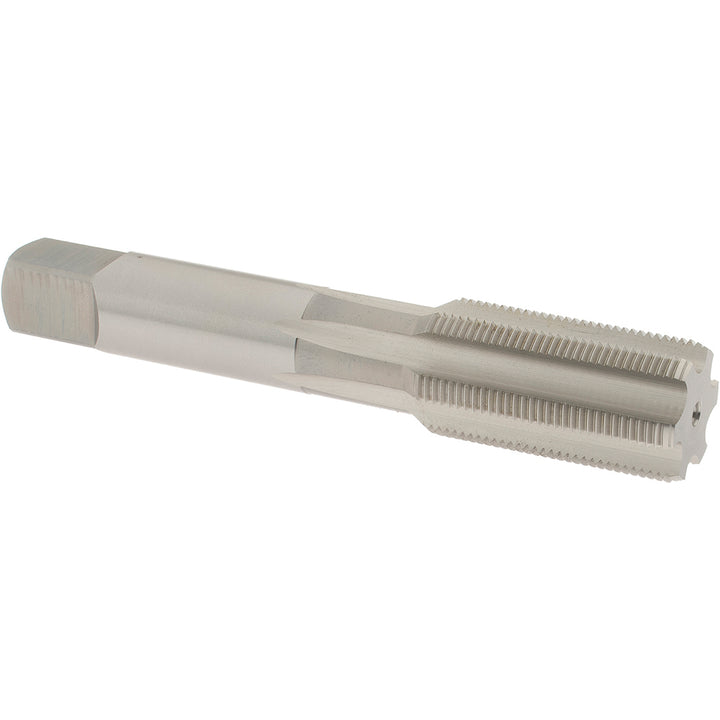

13/16-20 UNEF High-Speed Steel Standard Tap - OSG 1682000
MFR# 1682000Series 101N
$86.50List $110.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size13/16-20
Description
The OSG 1682000 is a 13/16-20 UNEF High-Speed Steel Standard tap. 6 flutes.
Specifications
ChamferBottoming
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.3820
Number of flutes6
Overall length in4-15/32
OversizeNo
Shank diameter0.652
Square length0.6875
Square size0.489
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length in2
Thread limitH3
Thread size in13/16-20
Thread standardUNEF
