OSG
1-20 UNEF High-Speed Steel Standard Tap - OSG 1682500
MFR# 1682500Series 101N
$113.52List $145.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size1-20
Description

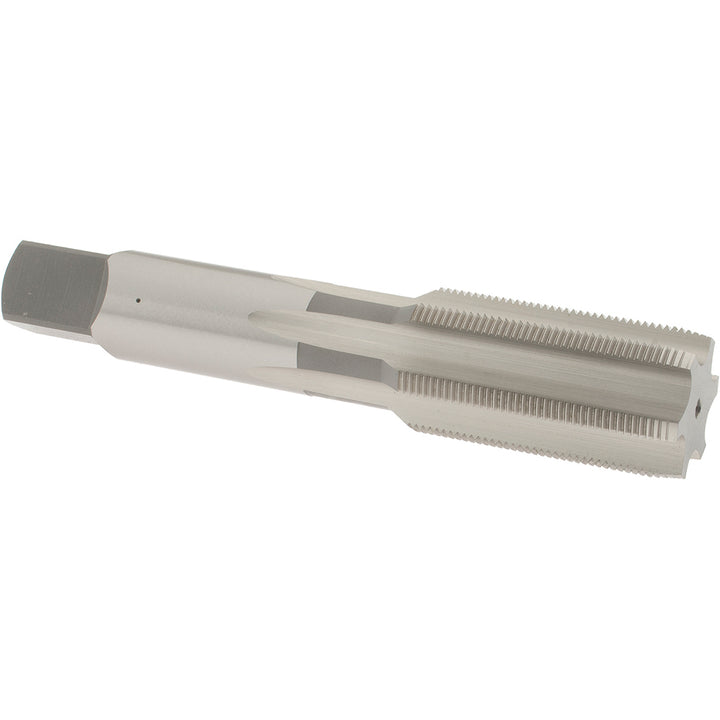

The OSG 1682500 is a 1-20 UNEF High-Speed Steel Standard tap. 6 flutes.
Specifications
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.7200
Number of flutes6
Overall length in5-1/8
OversizeNo
Shank diameter0.8
Square length0.8125
Square size0.6
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length in2-1/2
Thread limitH3
Thread size in1-20
Thread standardUNEF
