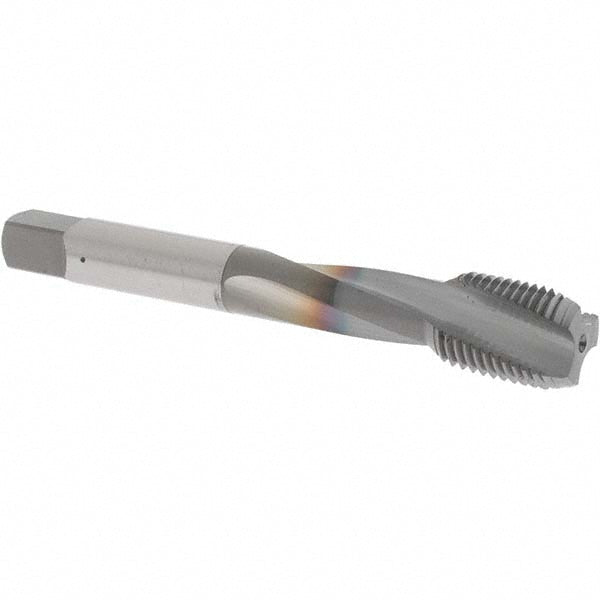

1/2-20 UNF Powdered Metal Tap, TiCN - OSG 1705008
MFR# 1705008Series 313
$70.64List $90.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingTiCN
Description
The OSG 1705008 is a 1/2-20 UNF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length1.78
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.323
Square length0.4375
Square size0.275
Threads per inch20
Thread directionRight Hand
Thread length0.614
Thread limitH5
Thread size in1/2-20
Thread standardUNF
