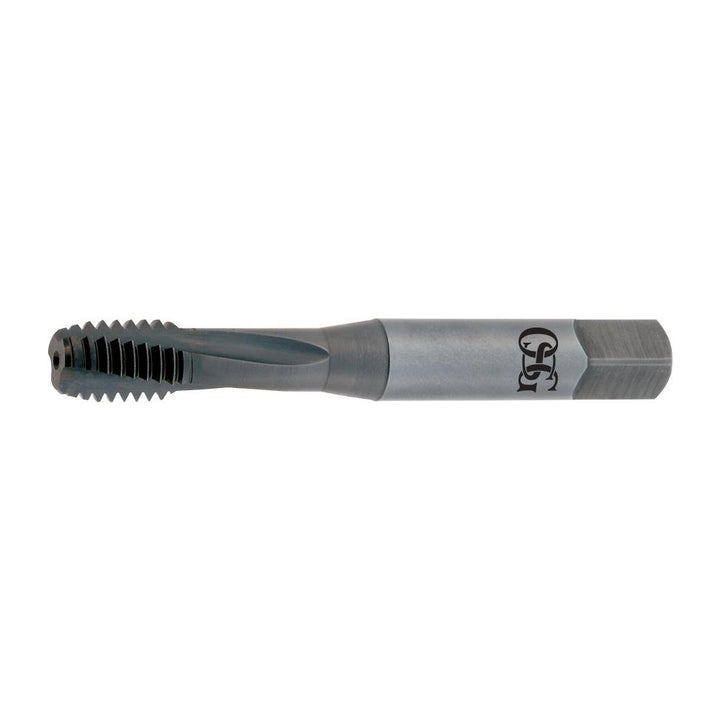

#10-32 UNF Powdered Metal Tap, Steam Oxide - OSG 1709601
MFR# 1709601Series 313NI
$40.76List $52.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 1709601 is a #10-32 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length1.933
Number of flutes3
Overall length in2-3/8
OversizeYes
Shank diameter0.367
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.866
Thread limitH5
Thread size in#10-32
Thread standardUNF
