OSG

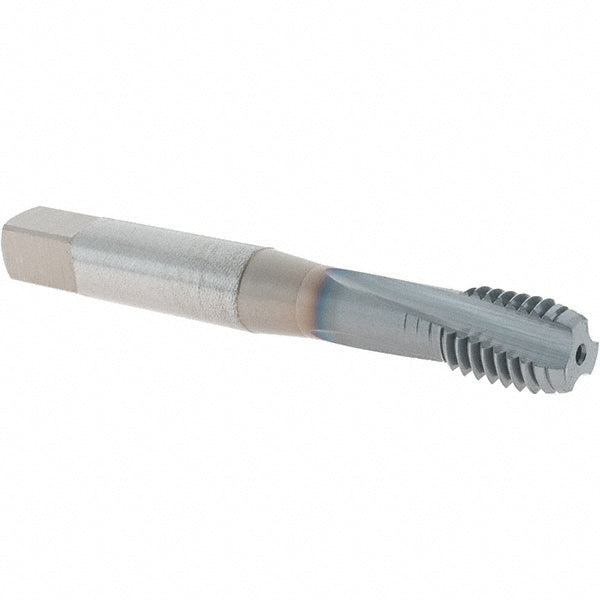

5/16-24 UNF Powdered Metal Tap, TiCN - OSG 1709908
MFR# 1709908Series 313NI
$52.95List $67.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTiCN
Description
The OSG 1709908 is a 5/16-24 UNF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)5.1
Number of flutes3
Overall length in2-23/32
Shank diameter (mm)1.8966
Shank length0.3180
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.445
Thread limitH3
Thread size in5/16-24
Thread standardUNF
