OSG

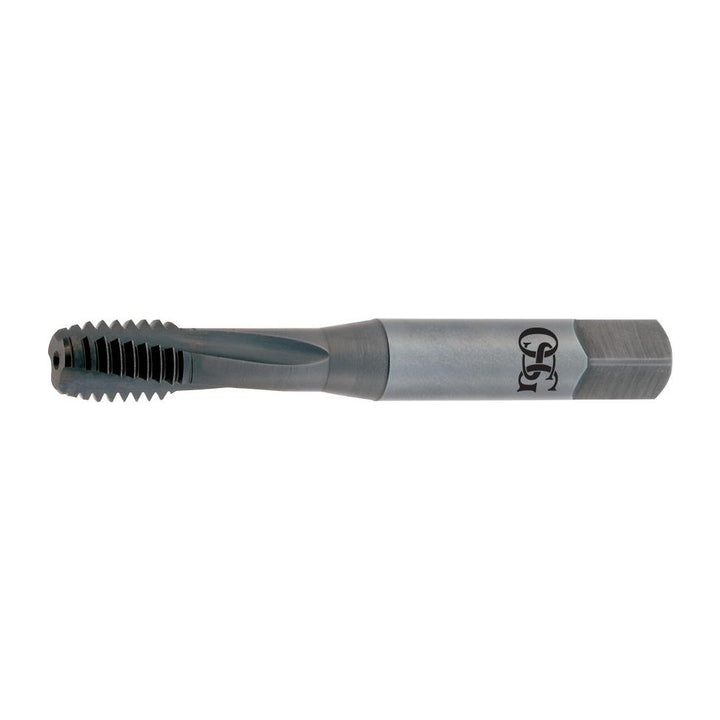

3/8-24 UNF Powdered Metal Tap, Steam Oxide - OSG 1710201
MFR# 1710201Series 313NI
$55.05List $70.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingSteam Oxide
Description
The OSG 1710201 is a 3/8-24 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length1.1259842519685042
Number of flutes3
Overall length in2-15/16
OversizeYes
Shank diameter0.318
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.5
Thread limitH5
Thread size in3/8-24
Thread standardUNF
