OSG

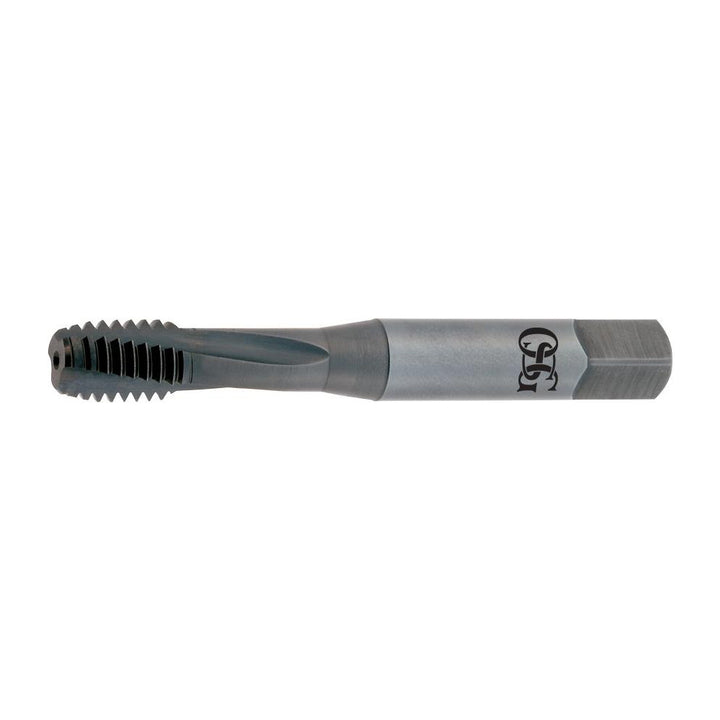

1/2-20 UNF Powdered Metal Tap, Steam Oxide - OSG 1710601
MFR# 1710601Series 313NI
$80.17List $102.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingSteam Oxide
Description
The OSG 1710601 is a 1/2-20 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)16
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length0.4375
Square size0.275
Threads per inch20
Thread directionRight Hand
Thread length0.614
Thread limitH5
Thread size in1/2-20
Thread standardUNF
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
