OSG

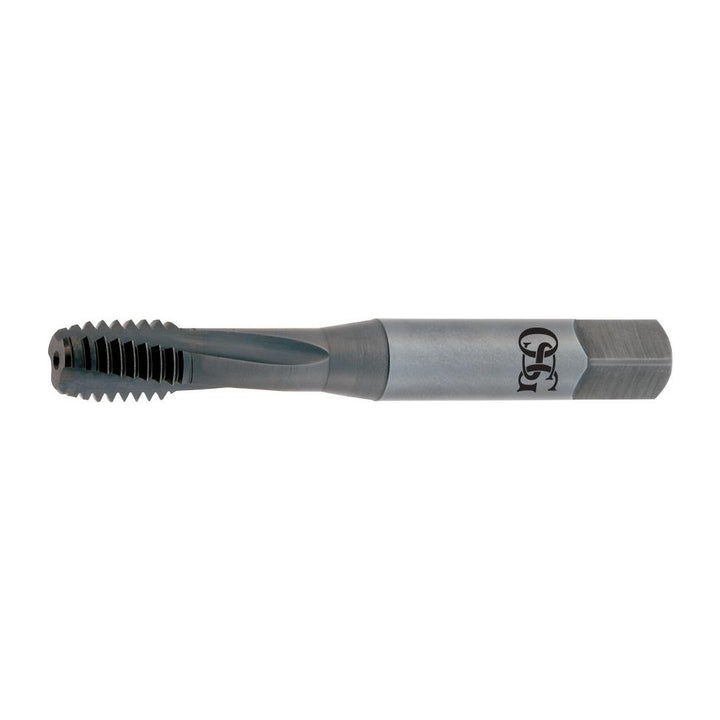

5/8-11 UNC Powdered Metal Tap, Steam Oxide - OSG 1710701
MFR# 1710701Series 313NI
$147.56List $189.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingSteam Oxide
Description
The OSG 1710701 is a 5/8-11 UNC Powdered Metal tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length1.972
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.429
Square length0.5625
Square size0.36
Threads per inch11
Thread directionRight Hand
Thread length0.728
Thread limitH3
Thread size in5/8-11
Thread standardUNC
