OSG

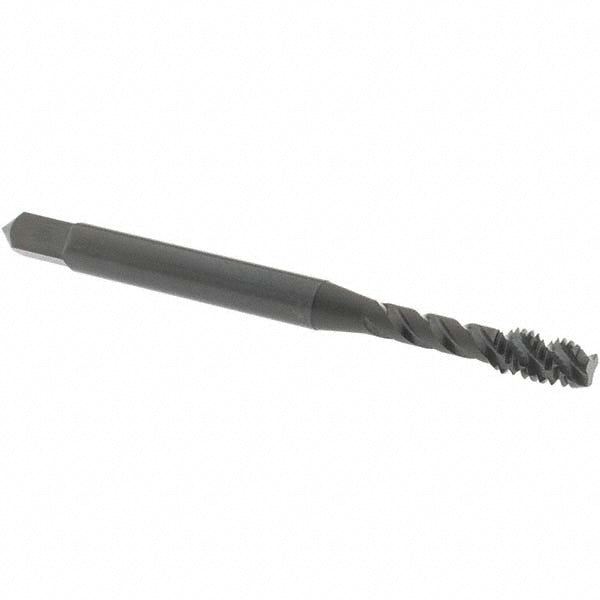

#6-32 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1713801
MFR# 1713801Series 302
$34.50List $44.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingSteam Oxide
Description
The OSG 1713801 is a #6-32 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Number of flutes3
Overall length in2
Threads per inch32
Thread length in11/16
Thread limitH3
Thread size in#6-32
Thread standardUNC
