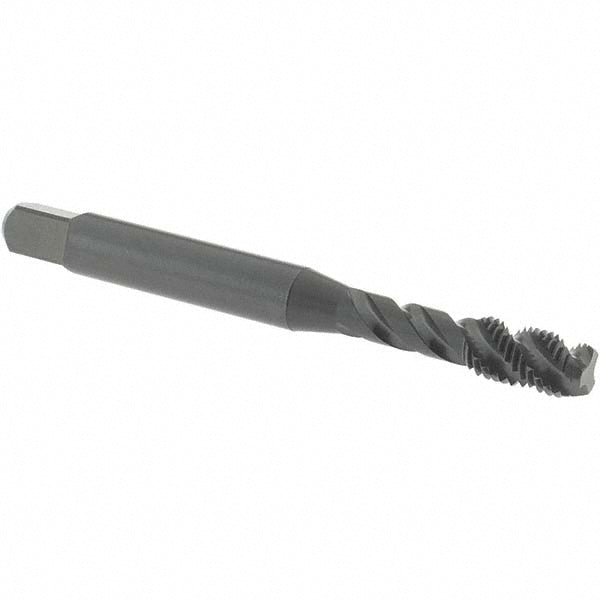

#10-32 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1714101
MFR# 1714101Series 302
$35.18List $45.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 1714101 is a #10-32 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Number of flutes3
Overall length in2-3/8
Threads per inch32
Thread length in7/8
Thread limitH2
Thread size in#10-32
Thread standardUNF
