OSG

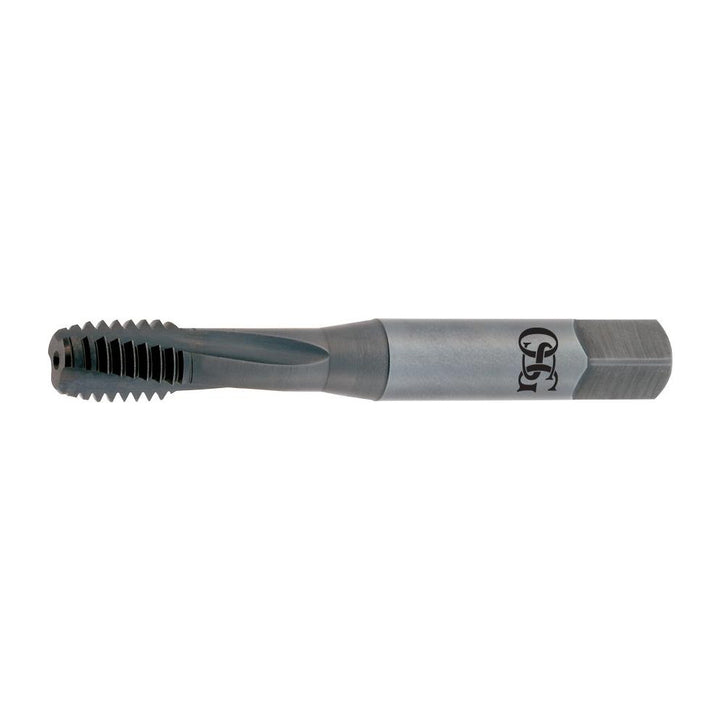

3/8-16 UNC Powdered Metal Tap, Steam Oxide - OSG 1720201
MFR# 1720201Series 313NI
$53.46List $68.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingSteam Oxide
Description
The OSG 1720201 is a 3/8-16 UNC Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)22.2
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3180
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread limitH5
Thread size in3/8-16
Thread standardUNC
