OSG

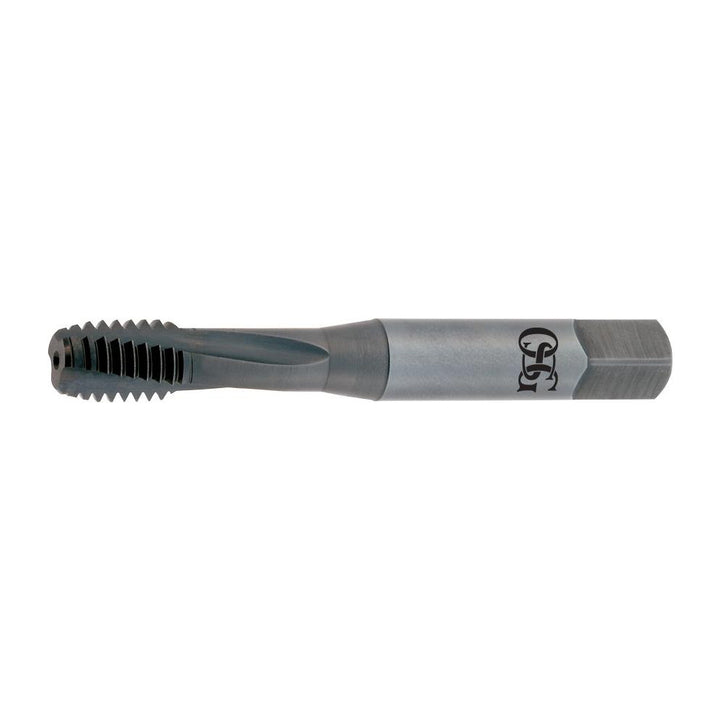

7/16-14 UNC Powdered Metal Tap, Steam Oxide - OSG 1720401
MFR# 1720401Series 313NI
$66.36List $85.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
CoatingSteam Oxide
Description
The OSG 1720401 is a 7/16-14 UNC Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)28.6
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
Square length0.40625
Square size0.242
Threads per inch14
Thread directionRight Hand
Thread length0.571
Thread limitH5
Thread size in7/16-14
Thread standardUNC
