OSG

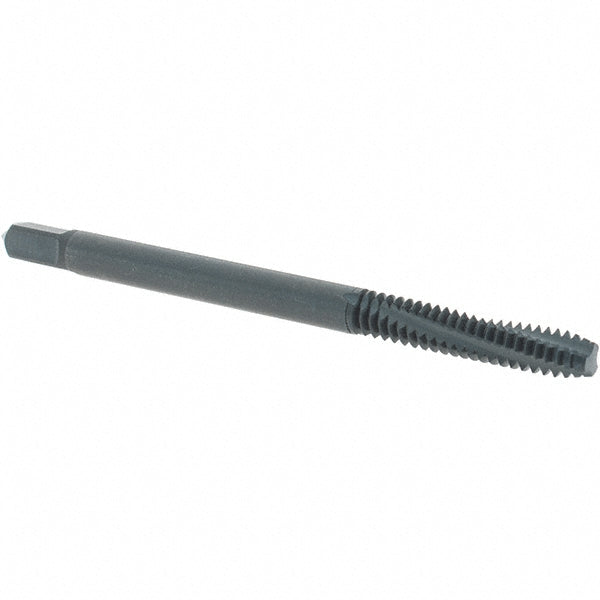

#6-32 UNC Powdered Metal Tap, Steam Oxide - OSG 1720701
MFR# 1720701Series 313NI
$39.75List $50.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingSteam Oxide
Description
The OSG 1720701 is a #6-32 UNC Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)31.8
Number of flutes3
Overall length in2
Shank diameter (mm)9.6774
Shank length0.1410
Square length0.1875
Square size0.11
Threads per inch32
Thread directionRight Hand
Thread length0.685
Thread limitH2
Thread size in#6-32
Thread standardUNC
