OSG

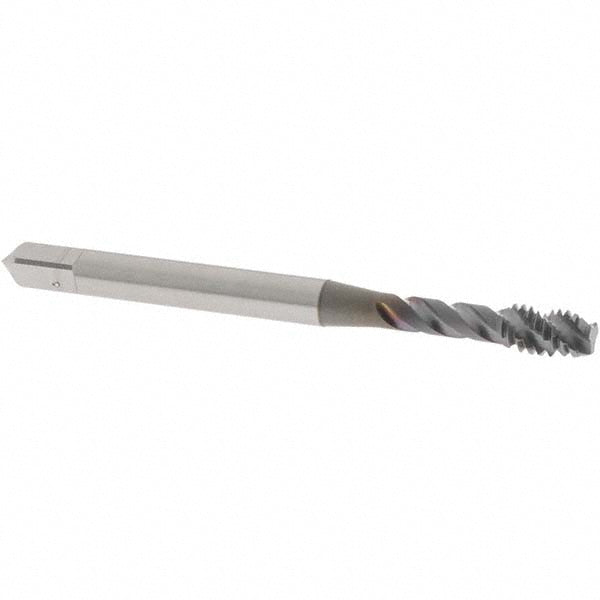

#8-32 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1722308
MFR# 1722308Series 303
$29.17List $37.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingTiCN
Description
The OSG 1722308 is a #8-32 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)5
Number of flutes3
Overall length in2-1/8
OversizeYes
Shank diameter0.1680
Square length0.25
Square size0.131
Threads per inch32
Thread directionRight Hand
Thread length0.252
Thread limitH5
Thread size in#8-32
Thread standardUNC
