OSG

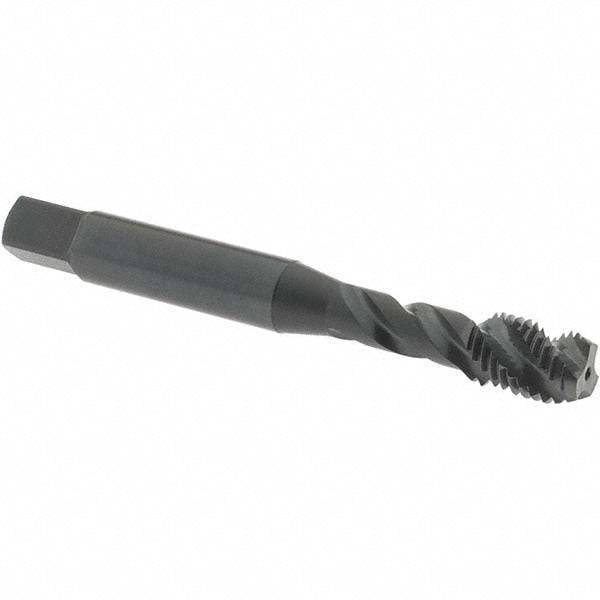

5/16-24 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1722901
MFR# 1722901Series 303
$31.70List $40.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingSteam Oxide
Description
The OSG 1722901 is a 5/16-24 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.126
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.445
Thread limitH4
Thread size in5/16-24
Thread standardUNF
