OSG

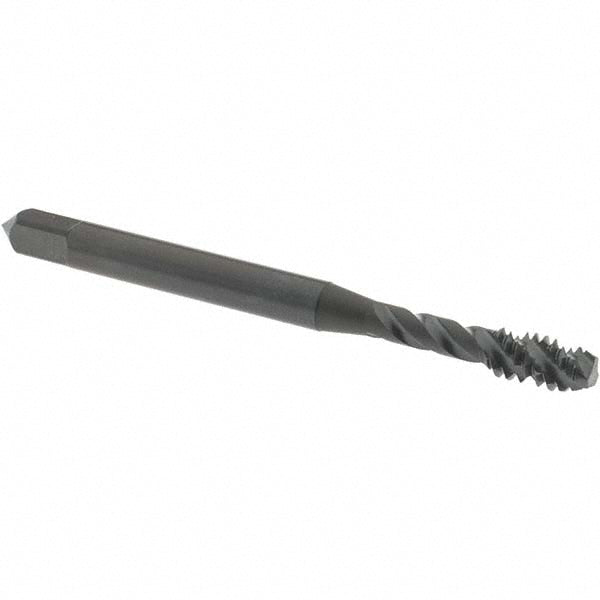

#10-24 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1724501
MFR# 1724501Series 303
$26.02List $33.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingSteam Oxide
Description
The OSG 1724501 is a #10-24 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.866
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.327
Thread limitH2
Thread size in#10-24
Thread standardUNC
