OSG

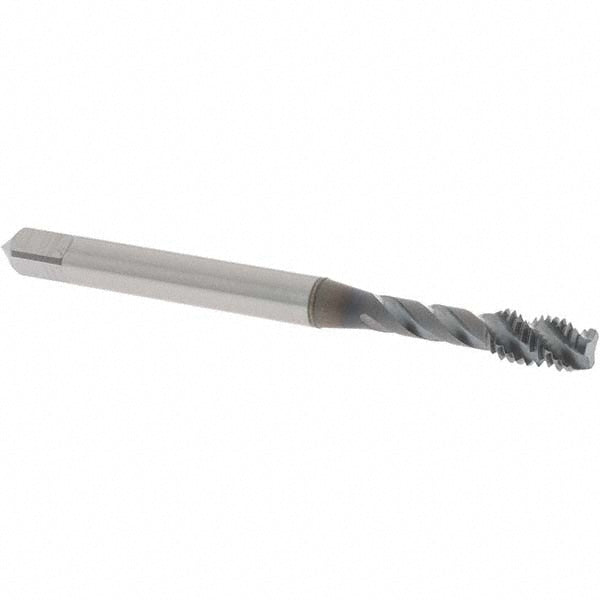

#10-32 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 1724608
MFR# 1724608Series 303
$29.82List $38.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingTiCN
Description
The OSG 1724608 is a #10-32 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length4.5275595511811
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter1.18
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.327
Thread limitH2
Thread size in#10-32
Thread standardUNF
