OSG

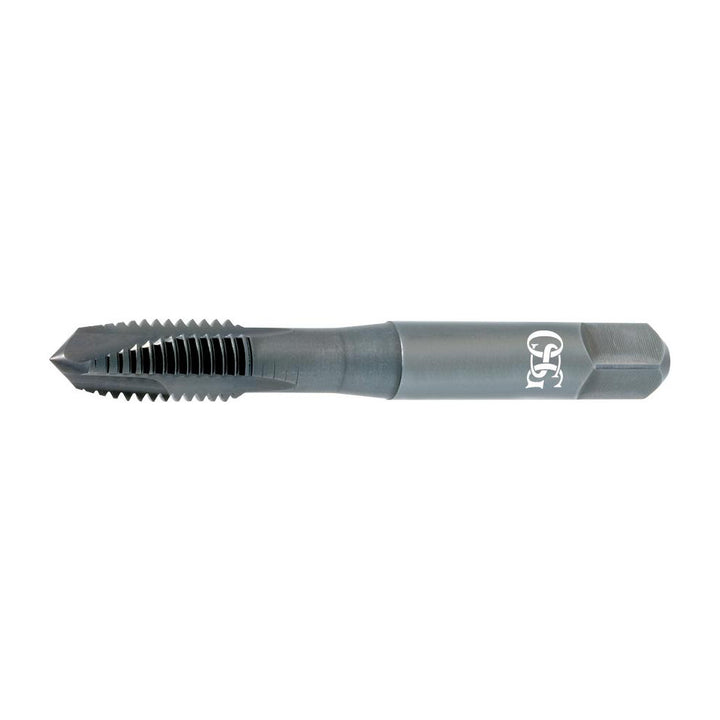

9/16-18 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 1725101
MFR# 1725101Series 300
$59.37List $76.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-18
CoatingSteam Oxide
Description
The OSG 1725101 is a 9/16-18 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length3.594
OversizeNo
Shank diameter0.429
Thread directionRight Hand
Thread length in1-21/32
Thread limitH3
Thread size in9/16-18
Thread standardUNF
