OSG

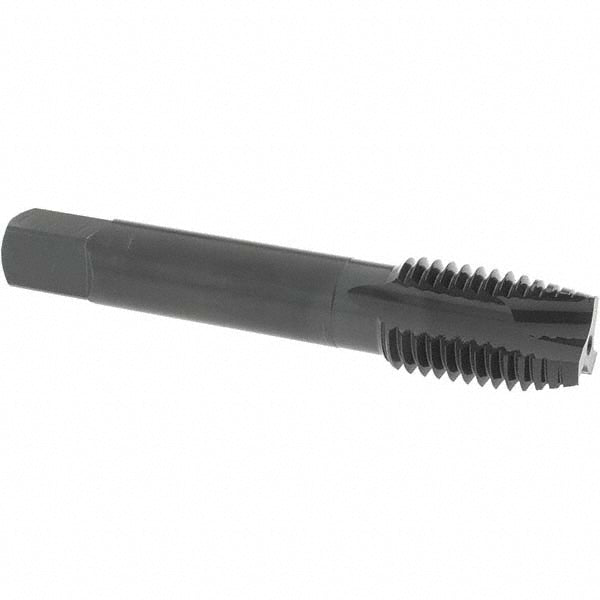

7/8-9 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 1725201
MFR# 1725201Series 300
$140.11List $179.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/8-9
CoatingSteam Oxide
Description
The OSG 1725201 is a 7/8-9 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length4.689
OversizeNo
Shank diameter0.697
Thread directionRight Hand
Thread length in2-7/32
Thread limitH4
Thread size in7/8-9
Thread standardUNC
