OSG
1-8 UNC High-Speed Steel-E Tap, TiCN - OSG 1725408
MFR# 1725408Series 300
$222.97List $285.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1-8
CoatingTiCN
Description

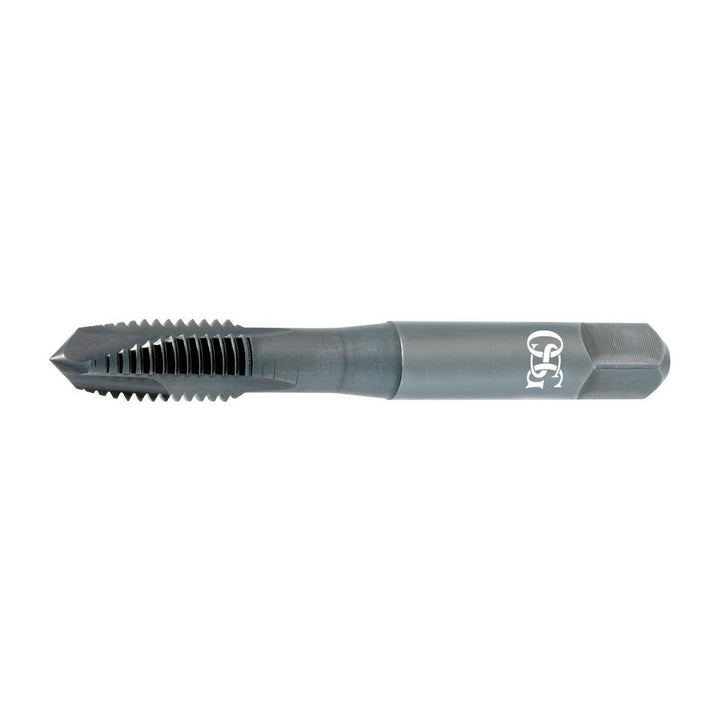

The OSG 1725408 is a 1-8 UNC High-Speed Steel-E tap with a TiCN finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length5.126
OversizeNo
Shank diameter0.8
Thread directionRight Hand
Thread length in2-1/2
Thread limitH4
Thread size in1-8
Thread standardUNC
