OSG
7/8-9 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1726201
MFR# 1726201Series 303
$175.07List $224.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-9
CoatingSteam Oxide
Description

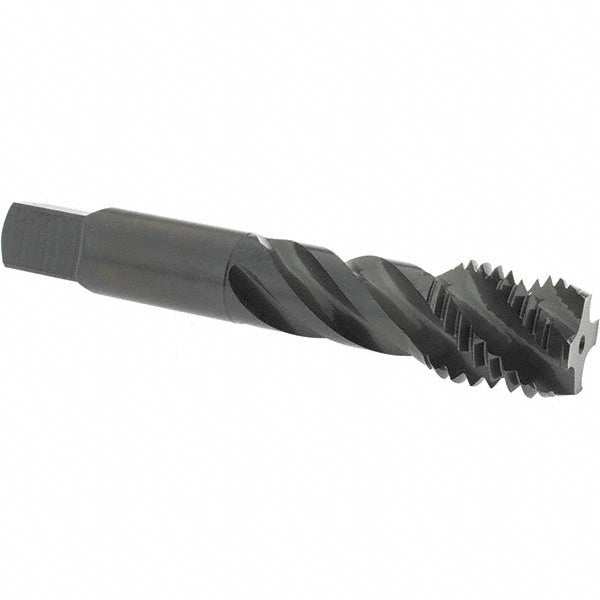

The OSG 1726201 is a 7/8-9 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.654
Number of flutes4
Overall length in4-11/16
OversizeNo
Shank diameter0.697
Square length0.75
Square size0.523
Threads per inch9
Thread directionRight Hand
Thread length0.89
Thread limitH4
Thread size in7/8-9
Thread standardUNC
