OSG
7/8-14 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 1726308
MFR# 1726308Series 303
$200.57List $257.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-14
CoatingTiCN
Description

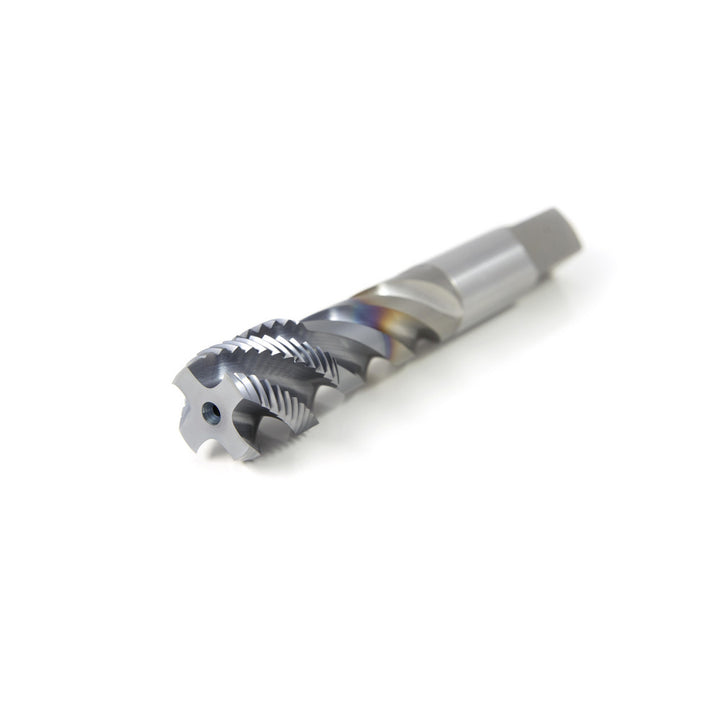

The OSG 1726308 is a 7/8-14 UNF Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.559
Number of flutes4
Overall length in4-11/16
OversizeNo
Shank diameter0.141
Square length0.75
Square size0.523
Threads per inch14
Thread directionRight Hand
Thread length0.89
Thread limitH4
Thread size in7/8-14
Thread standardUNF
