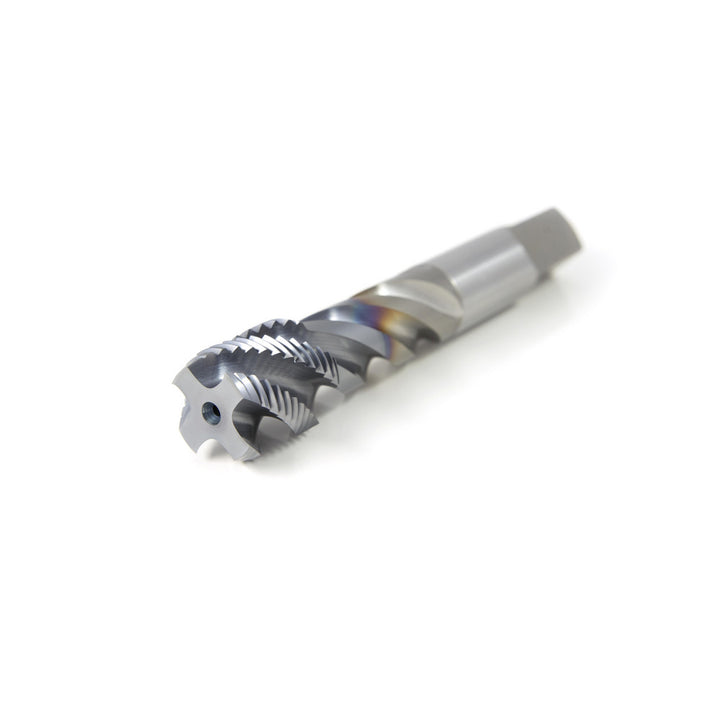

#1-8 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1726408
MFR# 1726408Series 303
$257.63List $330.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#1-8
CoatingTiCN
Description
The OSG 1726408 is a #1-8 UNC Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.996
Number of flutes4
Overall length in5-1/8
OversizeNo
Shank diameter0.255
Square length0.8125
Square size0.6
Threads per inch8
Thread directionRight Hand
Thread length1
Thread limitH4
Thread size in#1-8
Thread standardUNC
