OSG

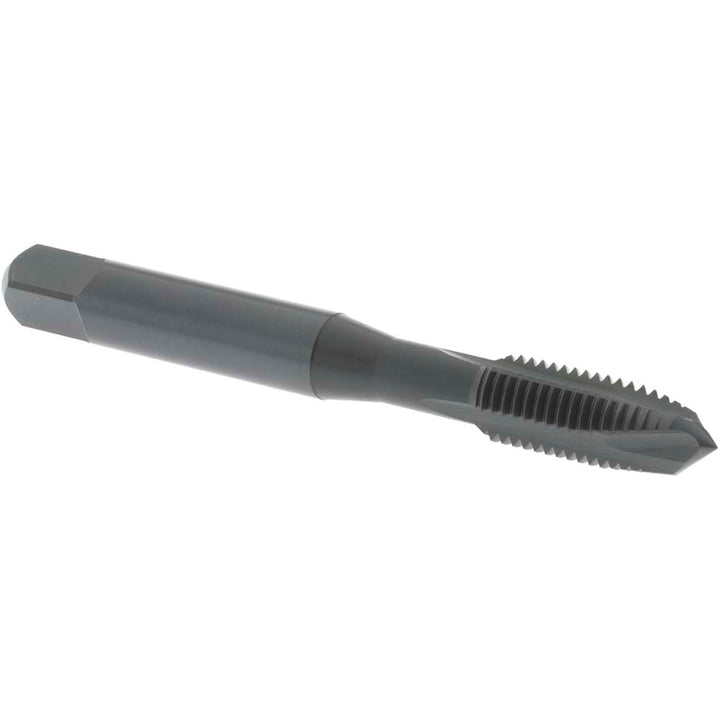

5/16-24 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 1728901
MFR# 1728901Series 300
$24.96List $32.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingSteam Oxide
Description
The OSG 1728901 is a 5/16-24 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length2.72
OversizeNo
Shank diameter0.318
Thread directionRight Hand
Thread length in1-1/8
Thread limitH5
Thread size in5/16-24
Thread standardUNF
