OSG

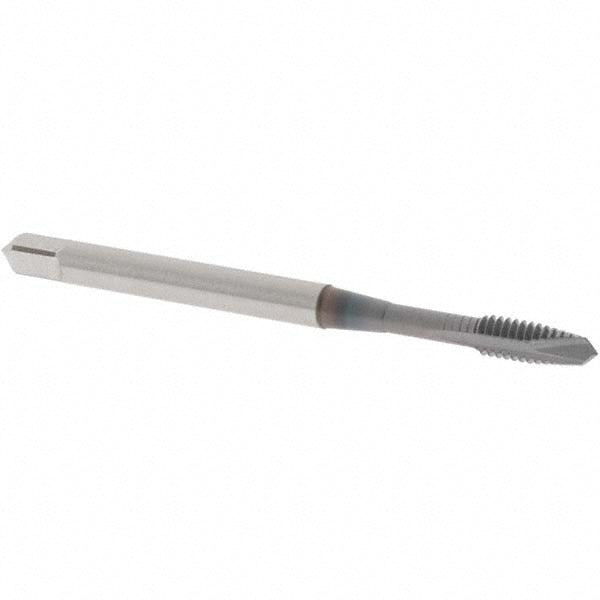

#5-40 UNC High-Speed Steel-E Tap, TiCN - OSG 1730108
MFR# 1730108Series 300
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#5-40
CoatingTiCN
Description
The OSG 1730108 is a #5-40 UNC High-Speed Steel-E tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes2
Overall length1.937
OversizeNo
Shank diameter0.141
Thread directionRight Hand
Thread length in5/8
Thread limitH2
Thread size in#5-40
Thread standardUNC
