OSG

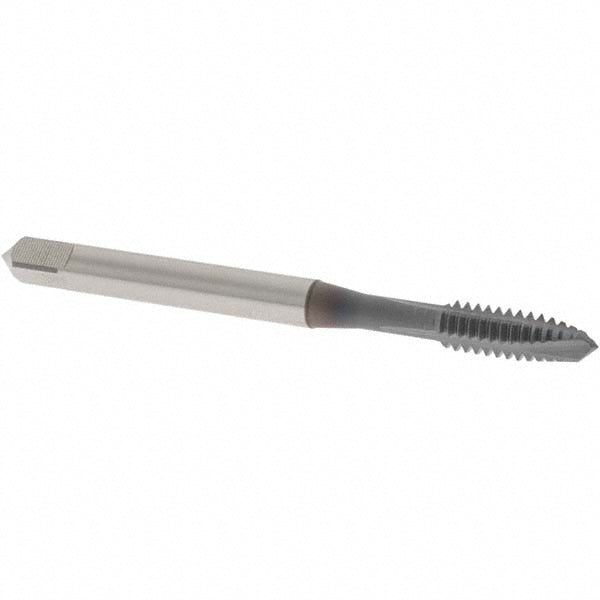

#10-24 UNC High-Speed Steel-E Tap, TiCN - OSG 1730408
MFR# 1730408Series 300
$21.10List $27.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingTiCN
Description
The OSG 1730408 is a #10-24 UNC High-Speed Steel-E tap with a TiCN finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length2.374
OversizeNo
Shank diameter0.194
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-24
Thread standardUNC
