OSG

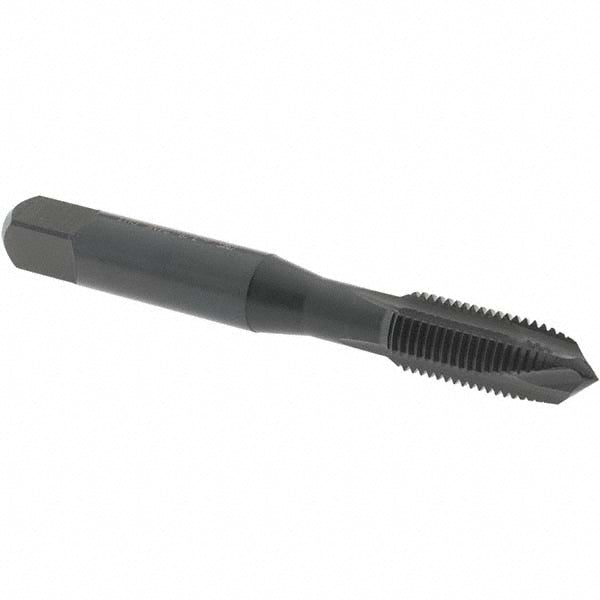

3/8-24 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 1731101
MFR# 1731101Series 300
$24.59List $31.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingSteam Oxide
Description
The OSG 1731101 is a 3/8-24 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length2.9370
OversizeNo
Shank diameter0.3810
Thread directionRight Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-24
Thread standardUNF
