OSG
5/8-11 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 1731601
MFR# 1731601Series 300
$67.92List $87.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingSteam Oxide
Description

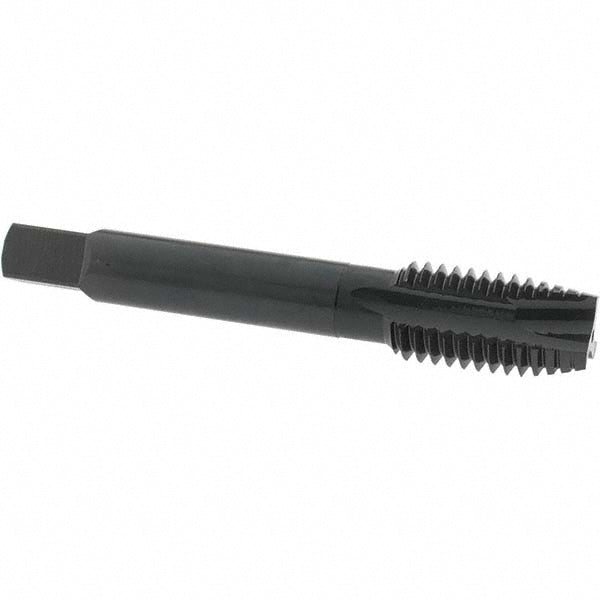

The OSG 1731601 is a 5/8-11 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationHardened Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Number of flutes3
Overall length3.811
OversizeNo
Shank diameter0.48
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in5/8-11
Thread standardUNC
