OSG

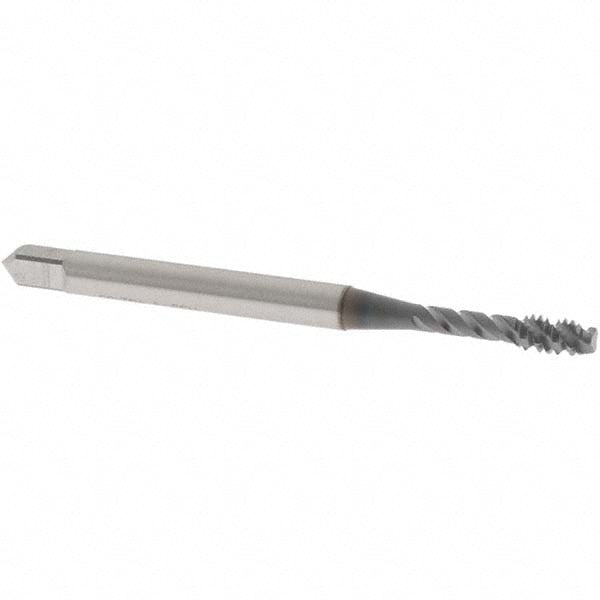

#4-40 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1732008
MFR# 1732008Series 303
$35.63List $45.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingTiCN
Description
The OSG 1732008 is a #4-40 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.685
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.197
Thread limitH2
Thread size in#4-40
Thread standardUNC
