OSG

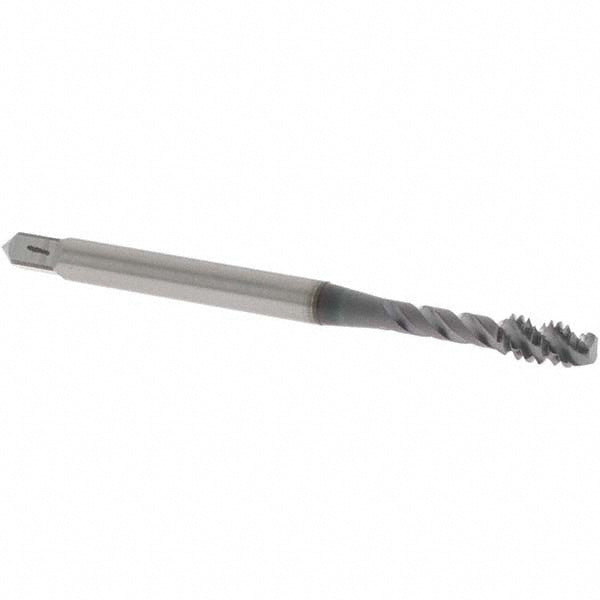

#6-32 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1732208
MFR# 1732208Series 303
$29.17List $37.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingTiCN
Description
The OSG 1732208 is a #6-32 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.126
Number of flutes3
Overall length in2
OversizeNo
Shank diameter0.48
Square length0.1875
Square size0.11
Threads per inch32
Thread directionRight Hand
Thread length0.248
Thread limitH3
Thread size in#6-32
Thread standardUNC
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
