OSG

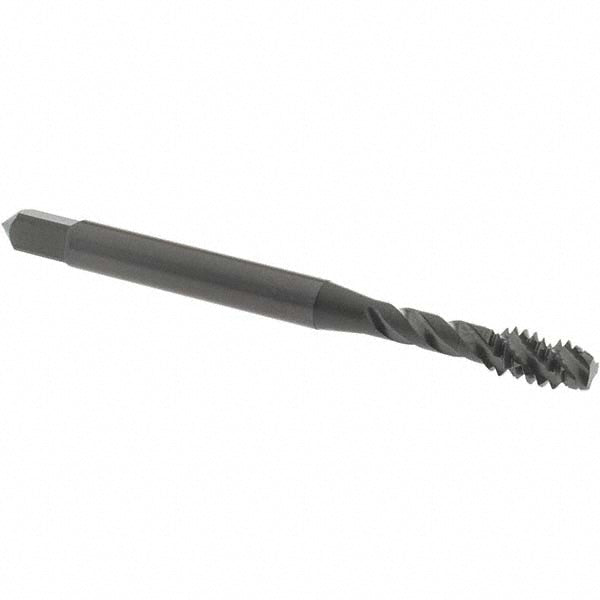

#10-24 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1732401
MFR# 1732401Series 303
$26.02List $33.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingSteam Oxide
Description
The OSG 1732401 is a #10-24 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B/3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.8660
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length0.2500
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.3270
Thread limitH3
Thread size in#10-24
Thread standardUNC
