OSG

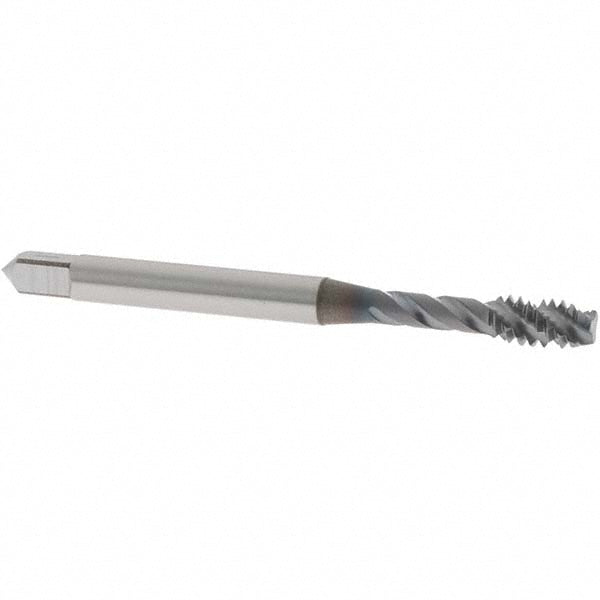

#10-24 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1732408
MFR# 1732408Series 303
$33.37List $42.06
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingTiCN
Description
The OSG 1732408 is a #10-24 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.433
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.59
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.327
Thread limitH3
Thread size in#10-24
Thread standardUNC
