OSG

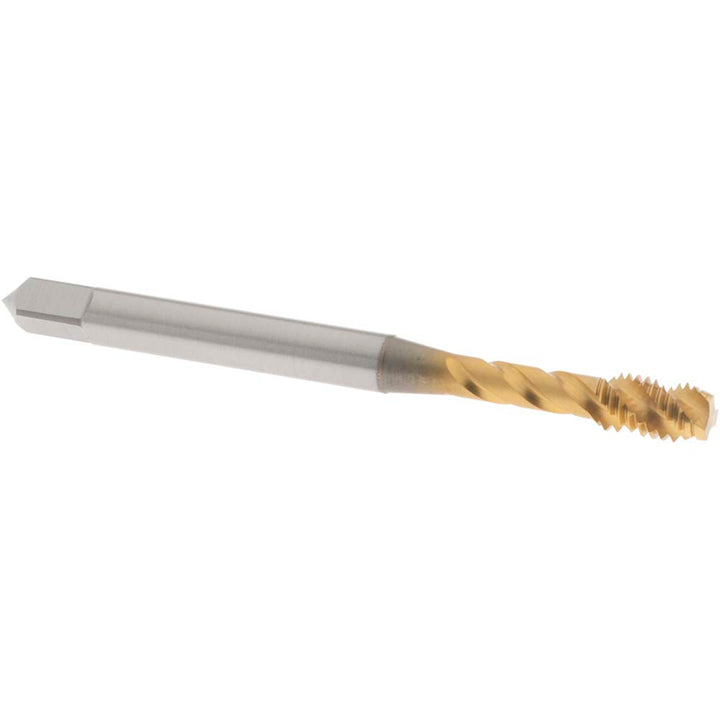

#10-32 UNF Vanadium High-Speed Steel Tap, TiN - OSG 1732505
MFR# 1732505Series 303
$25.13List $32.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingTiN
Description
The OSG 1732505 is a #10-32 UNF Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in2-3/8
Shank diameter0.194
Shank length0.1940
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.327
Thread limitH3
Thread size in#10-32
Thread standardUNF
