OSG

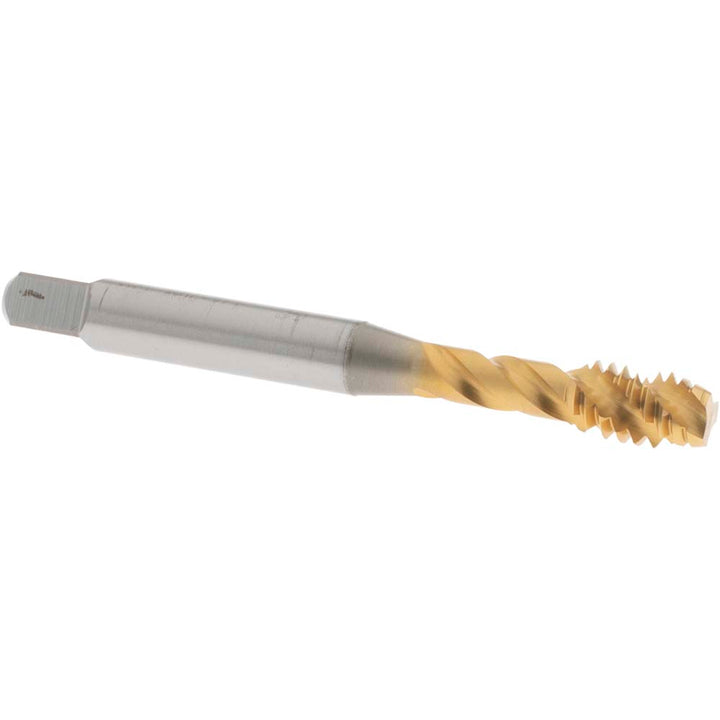

1/4-20 UNC Vanadium High-Speed Steel Tap, TiN - OSG 1732605
MFR# 1732605Series 303
$30.84List $39.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiN
Description
The OSG 1732605 is a 1/4-20 UNC Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in2-1/2
Shank diameter0.255
Shank length0.2550
Square length0.3125
Square size0.191
Threads per inch20
Thread directionRight Hand
Thread length0.398
Thread limitH3
Thread size in1/4-20
Thread standardUNC
