OSG

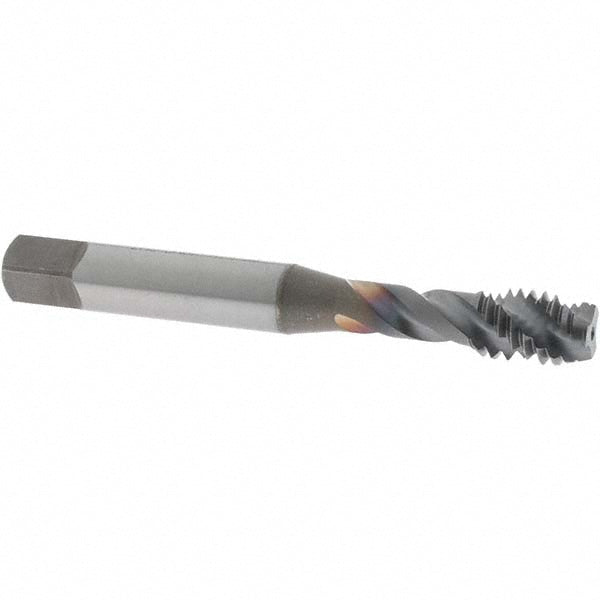

5/16-18 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1732808
MFR# 1732808Series 303
$36.32List $46.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiCN
Description
The OSG 1732808 is a 5/16-18 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.933
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.367
Square length0.375
Square size0.238
Threads per inch18
Thread directionRight Hand
Thread length0.445
Thread limitH3
Thread size in5/16-18
Thread standardUNC
