OSG

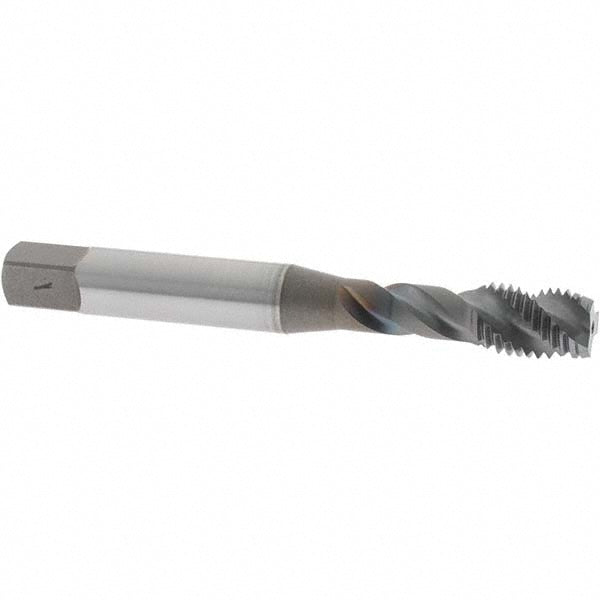

5/16-24 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 1732908
MFR# 1732908Series 303
$36.32List $46.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTiCN
Description
The OSG 1732908 is a 5/16-24 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.7130
Number of flutes3
Overall length in2-23/32
OversizeNo
Primary workpiece materialSteel; Stainless Steel
Shank diameter0.3230
Square length0.3750
Square size0.2380
Threads per inch24
Thread directionRight Hand
Thread length0.4450
Thread limitH3
Thread size in5/16-24
Thread standardUNF
